ZEISS VISUPLAN 500
ZEISS FOR EYE CARE PROFESSIONALS

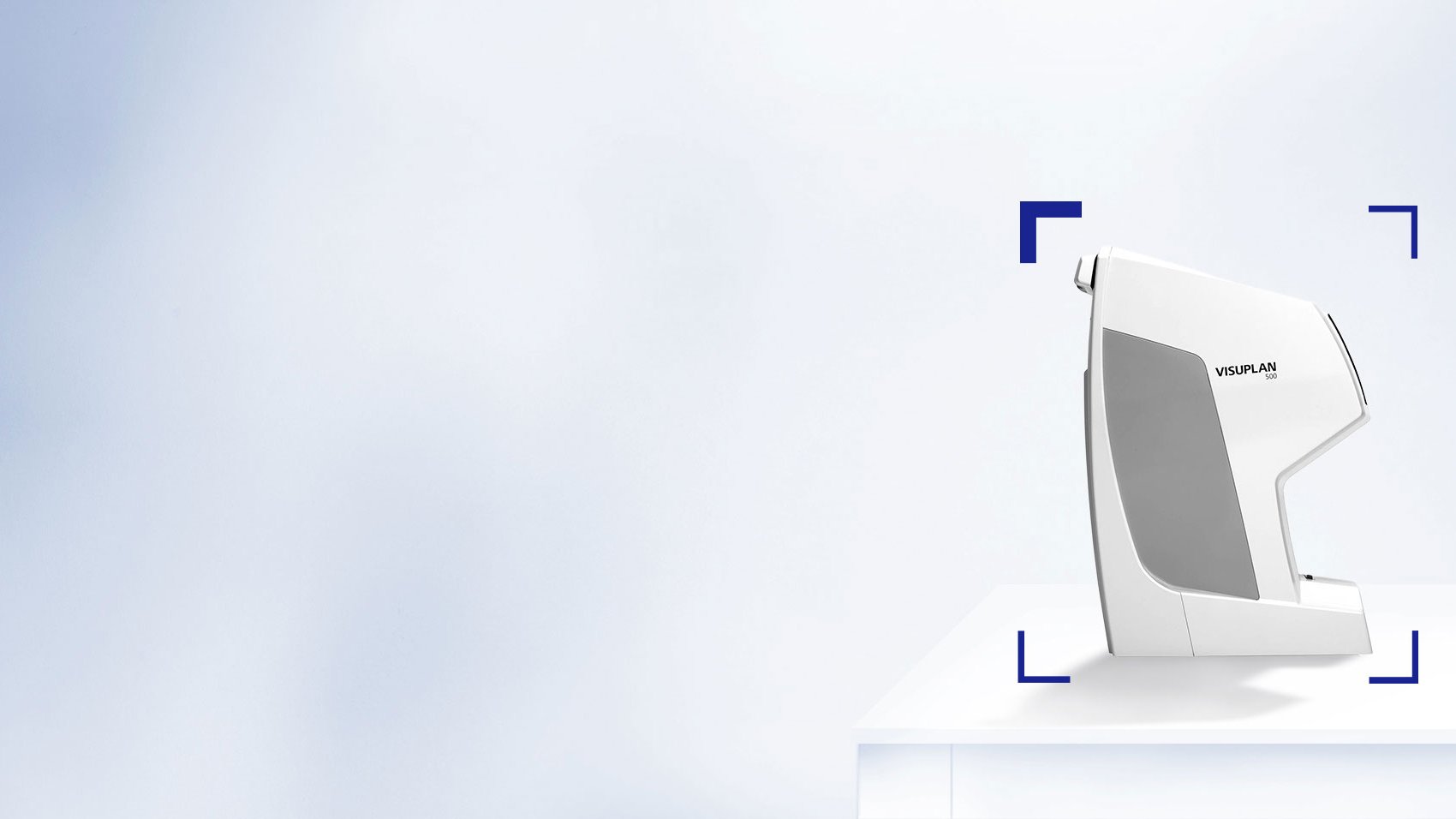

ZEISS VISUPLAN 500 Fast and comfortable intraocular pressure measurement.

Every professional glaucoma screening includes the measurement of intraocular pressure. The VISUPLAN® 500 from ZEISS makes this examination very easy and does not require contact with the cornea or an anesthetic.

Get in touch
  • Intuitive operation
  • Reliable LED fixation
  • Soft puff of air for more comfort
  • Connectivity with ZEISS VISUCONNECT 500

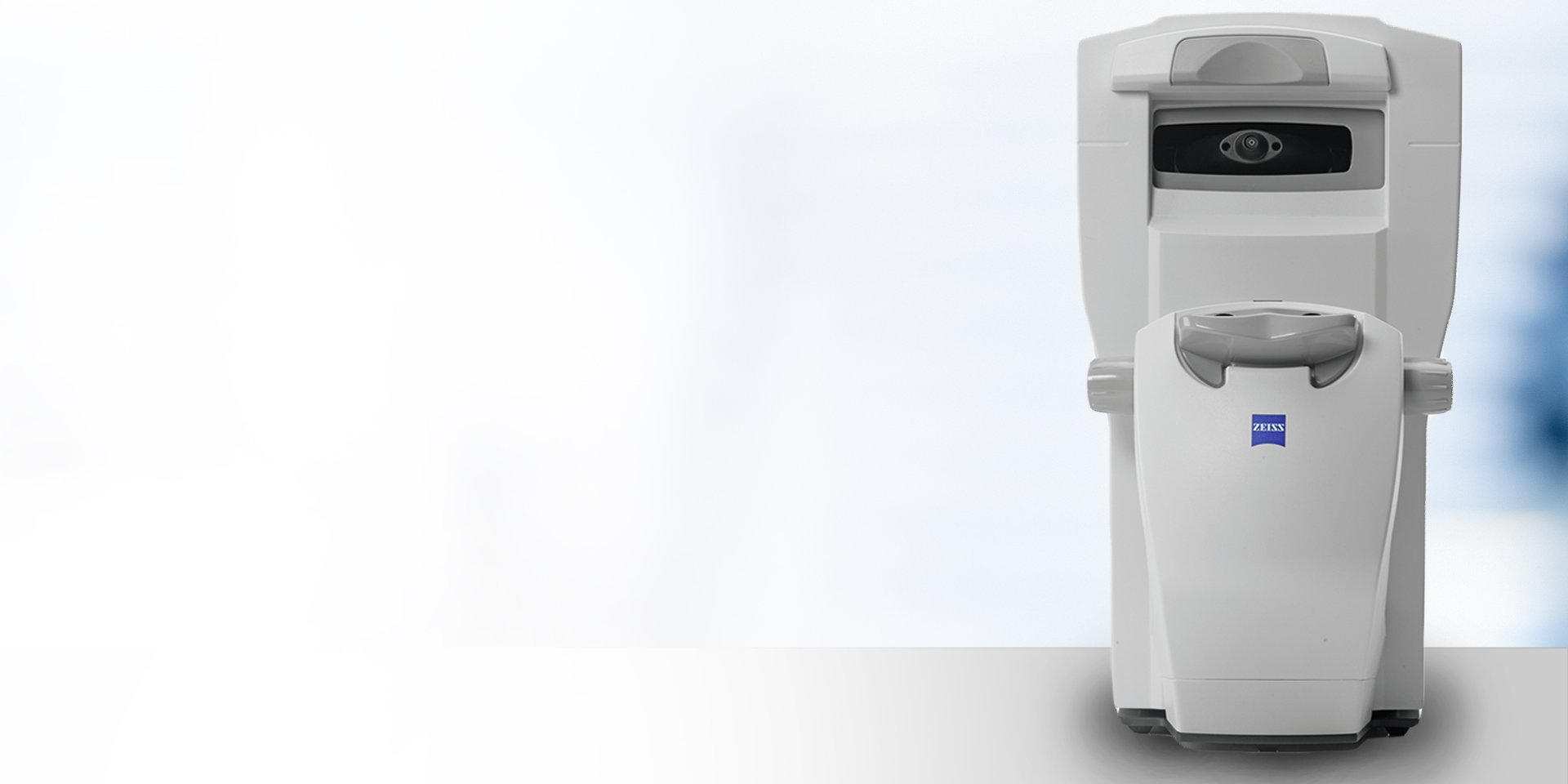

Intuitive operation and ease of use

The measurement process runs automatically.  Start  the test directly  via the touchscreen and choose from single or multiple measurements.  In order to  prepare your patient for the examination,  it is also possible to run a test-puff  in advance.

The results appear directly on the monitor. Alternatively, you can print out the results with the integrated thermal  printer, or  export  it  via the serial interface.

Reliability and comfort

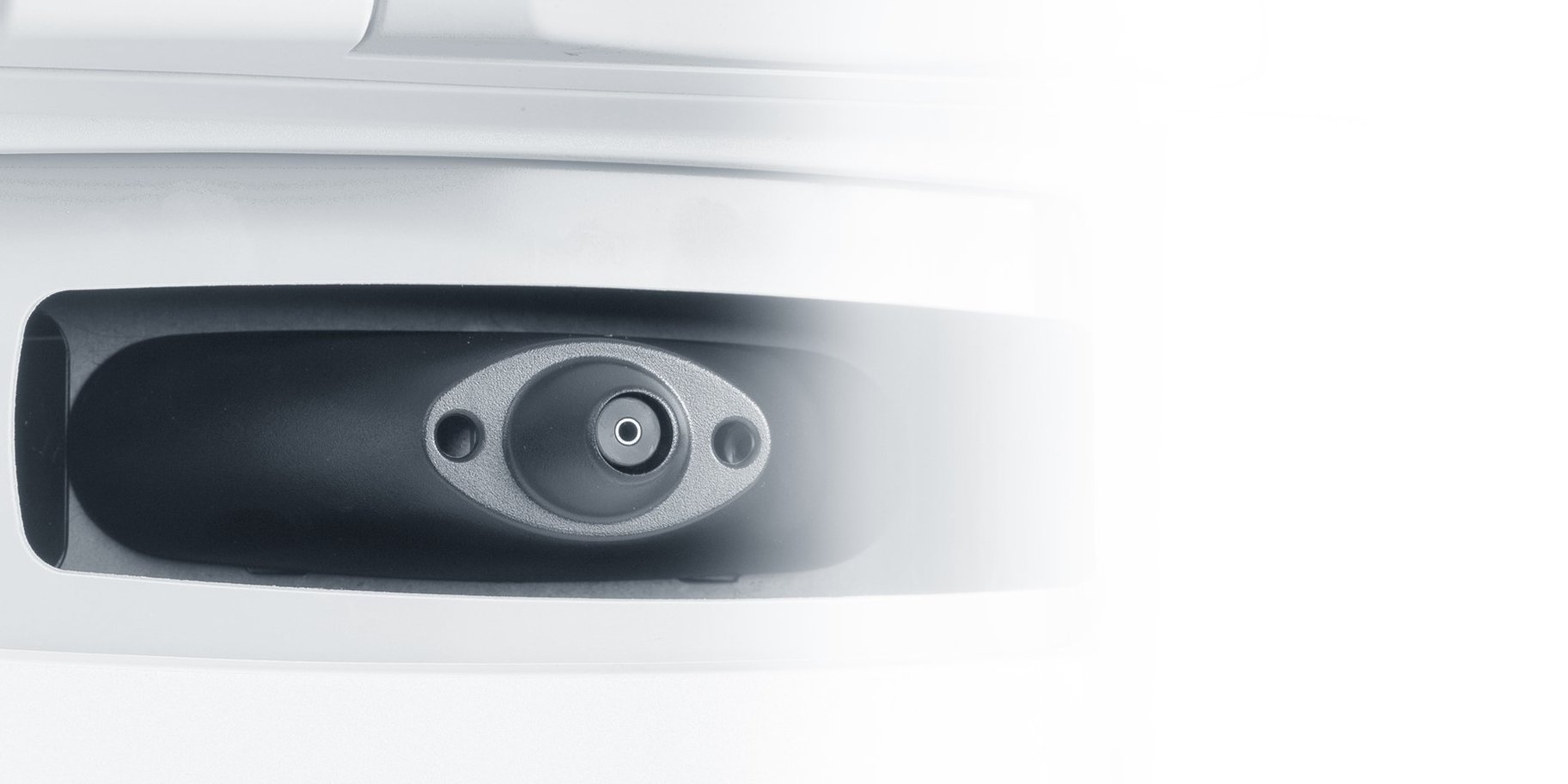

Thanks to the integrated LEDs, patients fixate intuitively. The stable headrest and optional chinrest allow for simple positioning of the patient.

The ZEISS VISUPLAN 500 makes the measurement of intraocular pressure a gentle and more comfortable process for your patients with a soft puff of air.

Benefits of using ZEISS VISUPLAN 500

  • Identify patients at risk quickly and reliably.
  • Receive accurate measuring results consistently, regardless of the operator.
  • Staff can perform the measurement.

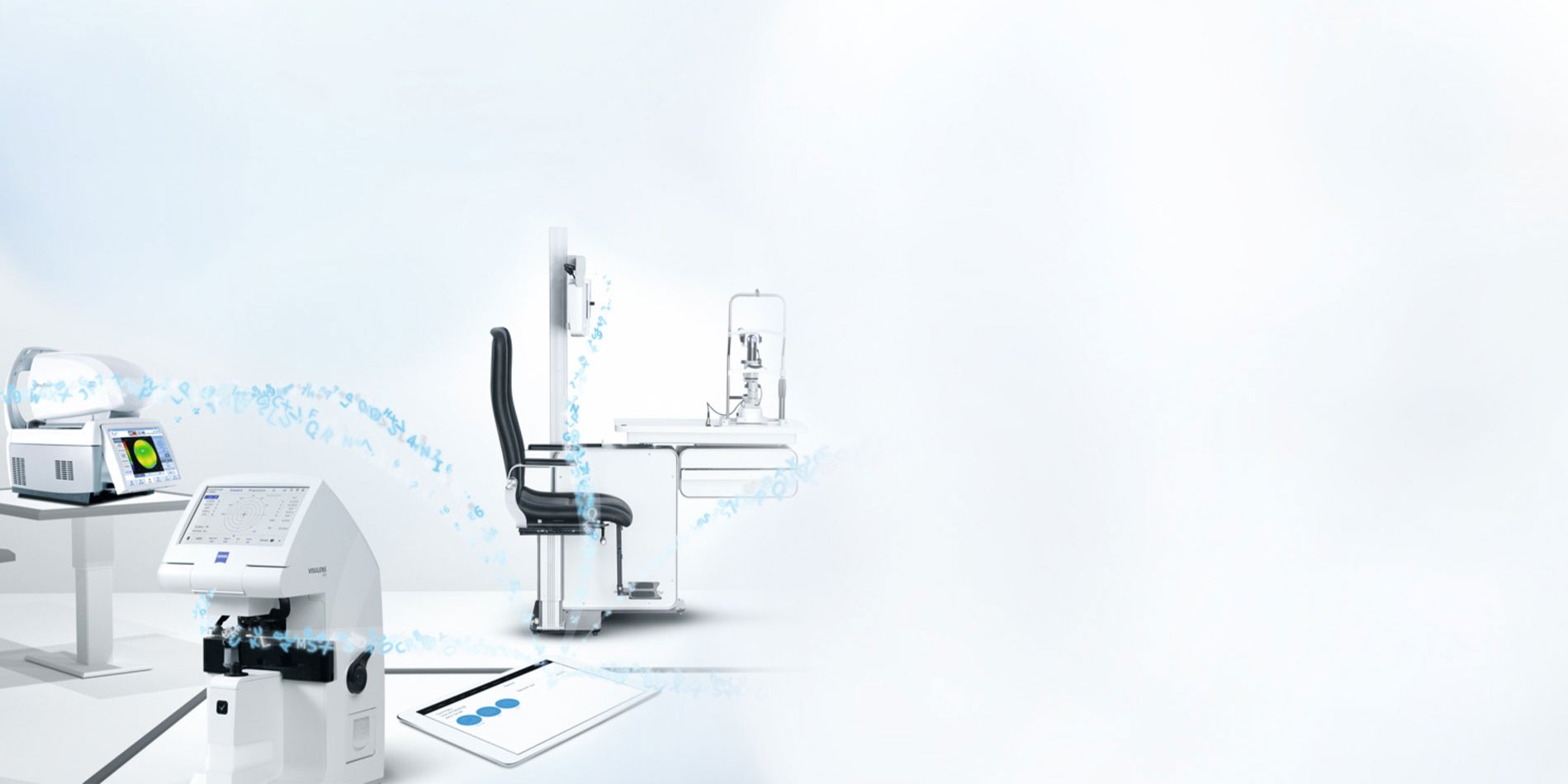

The optional VISUCONNECT® 500 by ZEISS accessory allows network integration, e.g. to run devices in a dedicated pretest area and export results to an exam room via EMR.



Save data with ZEISS VISUCONSULT 500

With VISUCONSULT®  500 from ZEISS, you  can  use a patient work list on a tablet or PC, save and transfer measurements to your PMS, and finally review and monitor the development of the intraocular pressure of your customers in an easy and intuitive way, thanks to the graphs:

  1. Enter the intraocular pressure values of your customer
  2. Review its development based on previous visits
  3. Document the development of the intraocular pressure

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Specifications

Dimensions (W x D x H)
270 x 359 x 501 mm
Weight
10.9 kg
Weight of the optional CR4VP chin rest
3 kg
Power frequency
50/60 Hz
Power consumption
60 – 85 VA
Voltage
100 – 240 V
Protection class
1
Instrument type
B (DIN EN 60601-1)
Measuring range
7 – 60 mmHg
Monitor
5.7" LCD TFT
Printer
Thermal Printer
Printer paper
Thermal paper (width: 57 mm, roll diameter: 50 mm)
