ZEISS i.Profiler plus Accurate analysis for better vision, day and night.

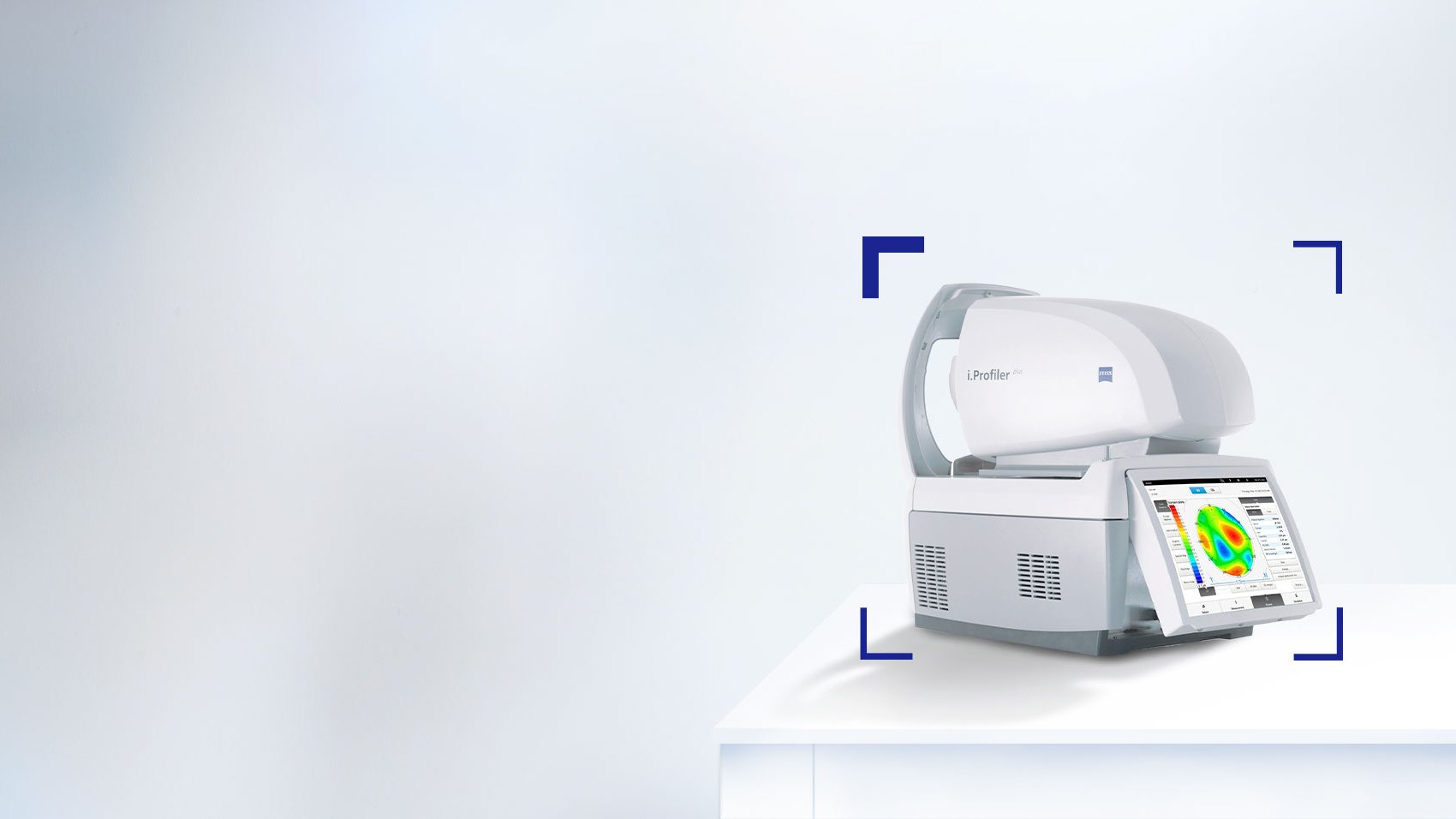

The i.Profiler plus by ZEISS is a 4-in-1 compact system that combines an ocular wavefront aberrometer, autorefractometer, ATLAS corneal topographer and keratometer in a single device. The most accurate lenses can only be prescribed when you have all the relevant information about a patient’s eyes. Let the ZEISS i.Profiler plus provide you with a detailed visual profile so you can meet your patients’ visual needs.

Get in touch
  • Capture, evaluate and explain the best possible solution for each patient
  • Provides a comprehensive overview of patients' visual performance and eye conditions
  • Fast, comprehensive and accurate
  • Can be incorporated into a digital workstream
  • Access to i.Scription® Technology by ZEISS for improved day and night vision

Assist with finding and explaining the best possible solution for each patient.

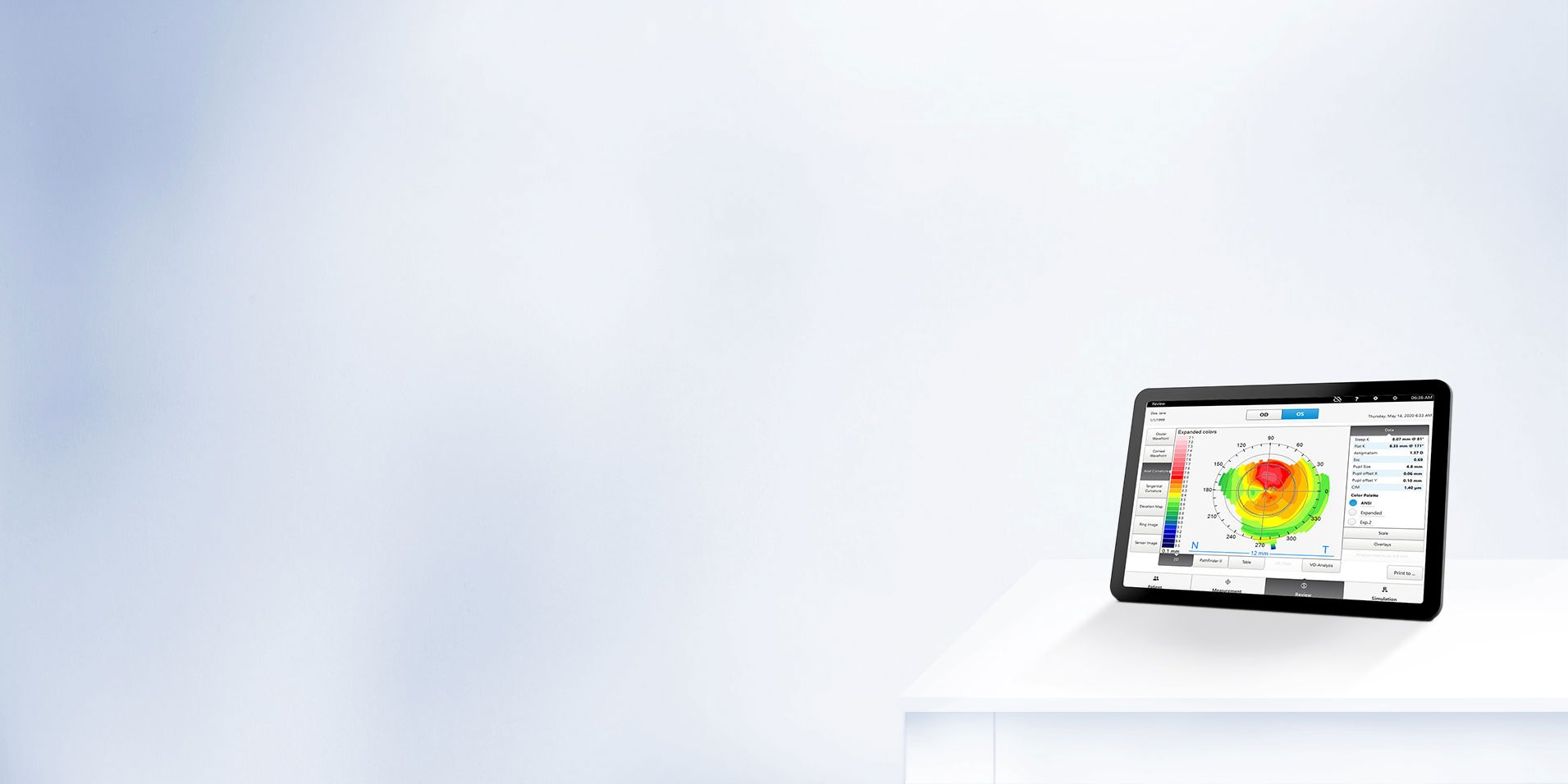

  • ZEISS i.Profiler plus features a high-resolution wavefront measurement and corneal topography, providing you with all the necessary data to fully evaluate the refractive status of your patient’s eyes.
  • The analysis mode enables you to visualize the impact of different aberrations on your patient’s vision, including up to seven Zernike aberrations.
  • It lets you prescribe ZEISS Lenses with i.Scription Technology, using the generated "fingerprint" measurement of each eye.
  • Connectivity to the optional ATLAS Review for the ZEISS i.Profiler plus software enables advanced keratometry and contact lens fitting.
Gives a comprehensive overview of a patient’s visual performance and eye conditions.

Gives a comprehensive overview of a patient’s visual performance and eye conditions.

  • Ability to provide data to support identification and analysis of ocular pathologies or abnormalities.
  • Supports the user in the identification of patients as good candidates for ZEISS i.Scription lenses.
  • Provides full analysis of the eye's refractive power distribution across the entire pupil aperture, not just the central zone.
50% reduction in chair time for subjective examination due to accurate starting objective data generated by ZEISS i.Profiler plus

Fast, comprehensive and accurate.

  • Fully-automated measurement procedure.
  • Touch screen control enables all measurements to be performed on both eyes in 60 seconds.
  • High-resolution Hartmann-Shack wavefront sensor measures 1,500 points across a 7-millimeter pupil aperture.
  • User-friendly, easy-to-use functions enable capture, evaluation, presentation and analysis of data.
  • 50% reduction in chair time for subjective examination due to accurate starting data generated by  ZEISS i.Profiler plus. 1
Access to i.Scription® Technology by ZEISS.

Access to i.Scription® Technology by ZEISS.

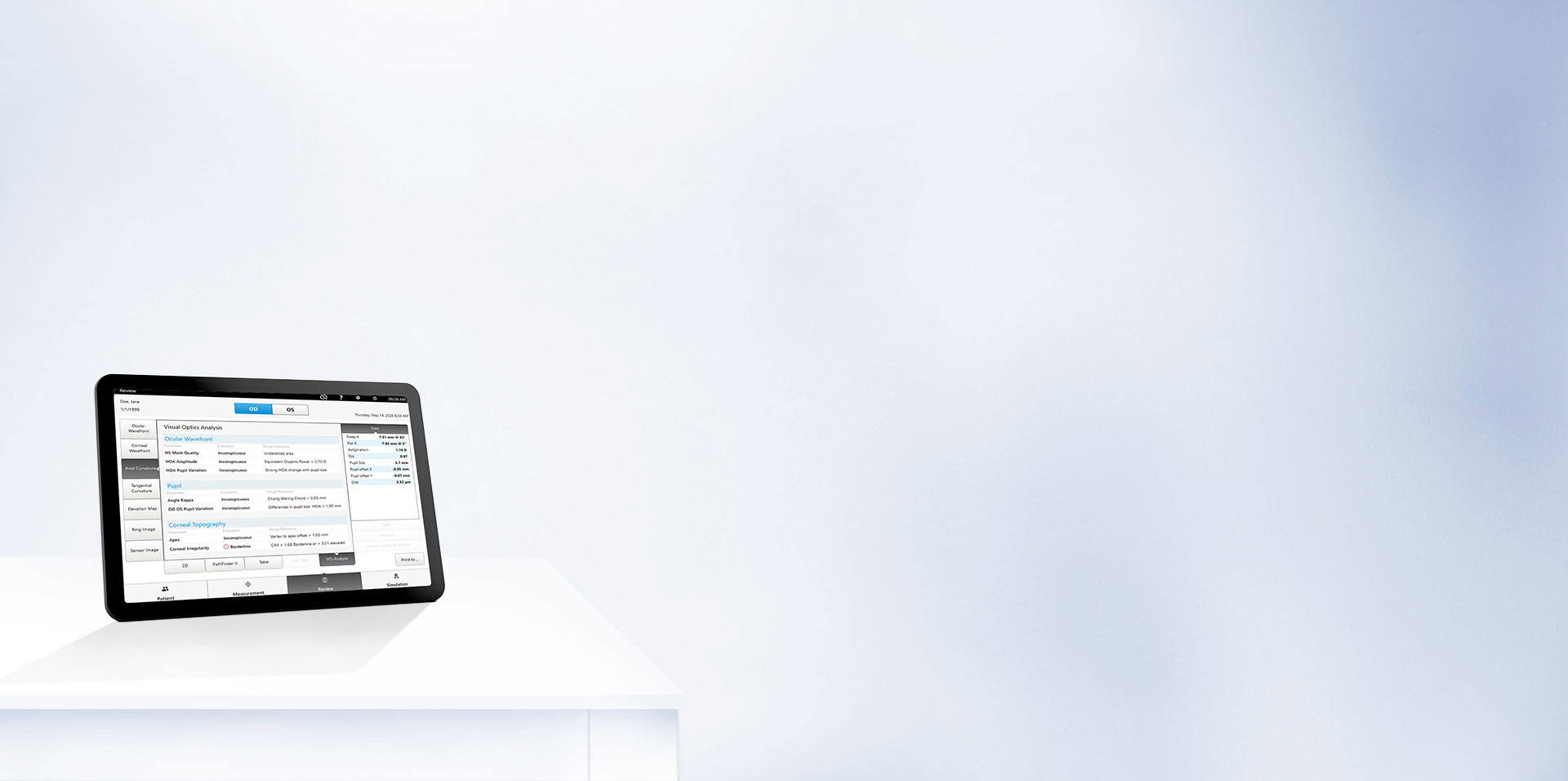

  • The seven visual optics analysis parameters summarize and evaluate the interactions of measurements obtained from the wavefront analyzer, the detected pupil and the corneal topographer.
  • This provides an automatic and complete assessment of the eye optics, a sound foundation of a fast and accurate subjective refraction, and the identification of "i.Scription ready" patients.
  • With ZEISS i.Scription Technology, you can offer each patient a unique lens solution, improving their vision day and night.
  • The benefits of i.Scription® Technology by ZEISS can be simulated and demonstrated to the patient using the point spread function graphs and comparison (with and without i.Scription).
Can be incorporated into your digital workstream.

Outstanding connectivity: incorporate it into your digital workstream.

  • Ability to remotely access the ZEISS i.Profiler plus via VISUCONSULT 500 and demonstrate the patient’s ZEISS i.Scription analysis on the iPad® 2.
  • The data captured from the ZEISS i.Profiler plus is saved on the VISUCONSULT 500 data management system, allowing for future consultation use, ordering and archiving, without any need for further measurements.
  • It integrates with compatible PMS systems for a smooth and efficient workflow.3

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

ZEISS i.Profiler plus

Technical specifications
Technical Data, Wavefront
Measuring range, sphere:

-20 D to +20 D (3.5mm pupils)

-15 D to +15 D (5.5mm pupils)
Measuring range, cylinder:
0 D to +8 D
Axis:
0º – 180º
Measuring surface:

2.0mm to 7.0mm (three zones)
No. of measuring points:
up to 1500
Method:
Hartmann-Shack
Reference wavelength1:

555nm according to ISO 24157

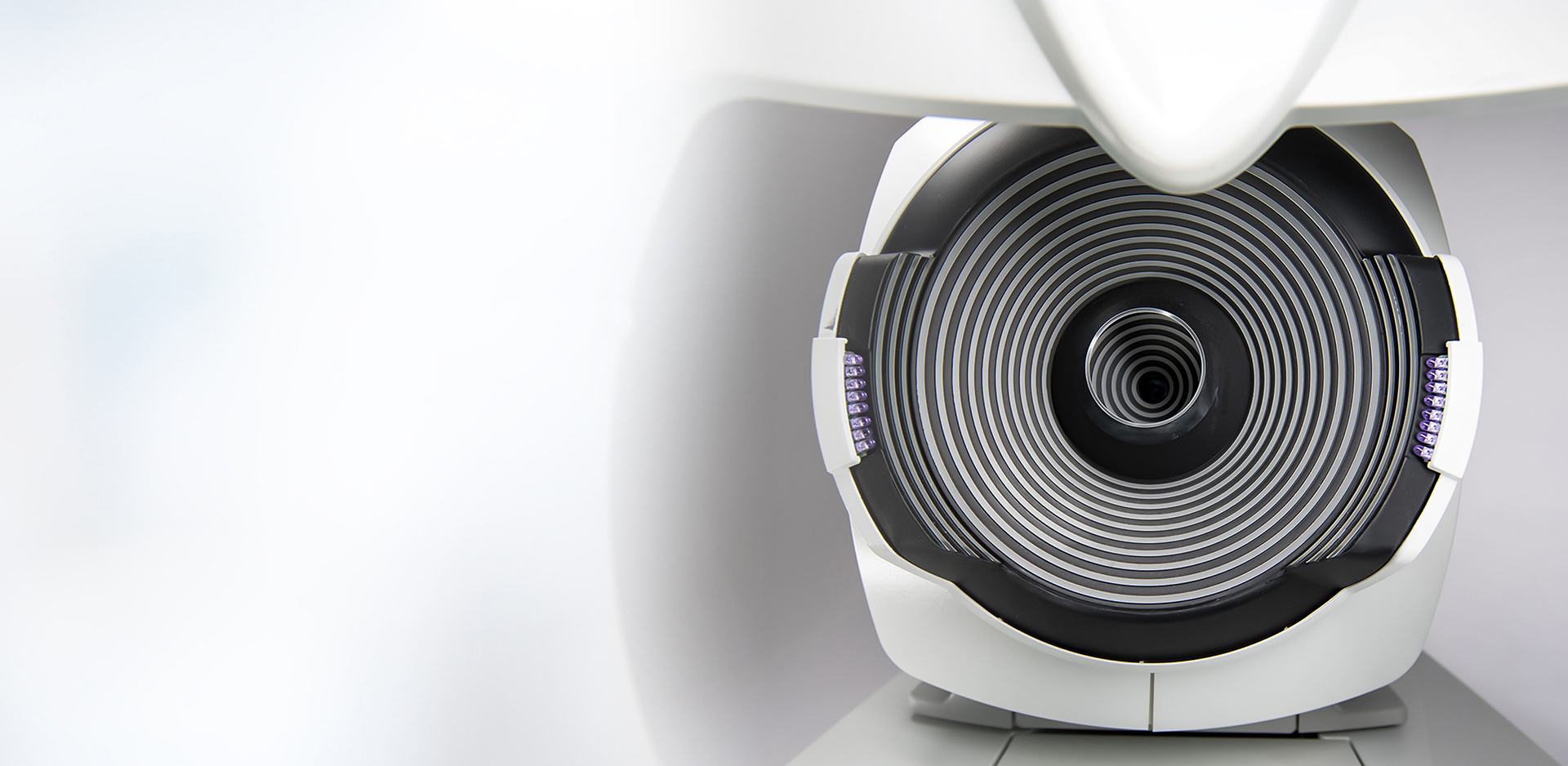

Technical Data, Corneal Topography
No. of rings:
22 (18 complete rings)
No. of measuring points:
3,425
Detected corneal surface at 42.125 D:

dia. 0.75mm to 8.6mm
Diopters:
measuring range 25 to 65 D
Accuracy:

± 0.05 D (±0.01mm)
Reproducibility:

± 0.10 D (±0.02mm)
Type A:
according to ISO 19980

1 Reference wavelength for the interpretation of refractive errors (referring to the maximum luminosity function V(λ) of the human eye in daylight).

Line voltage
100-240 V AC ± 10%, 50…60 Hz
Power consumption
≤ 200 VA
Dimensions (W x H x D)

345 x 555 x 525mm
Weight

30kg
Interfaces
VGA, 3x USB, RS232, 2x LAN
Printer
Thermal, integrated
Display
12" Color Touch LCD
